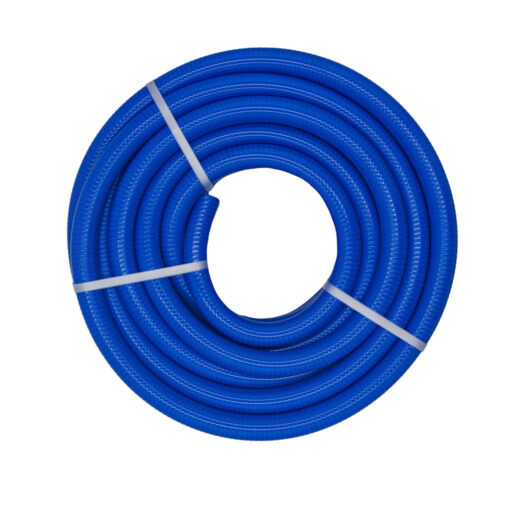

An extremely flexible hose particularly well suited for collection of environmental waste products and chemicals. Its high nitrile / PVC compound gives this hose improved resistance to mineral oils and animal fats as well as reducing compression set. This makes it ideal for grease trap & septic tank applications especially in colder weather. Its has enhanced UV stability. Operating Temperature from -5°C to +60°C
An extremely flexible hose particularly well suited for collection of environmental waste products and chemicals. Its high nitrile / PVC compound gives this hose improved resistance to mineral oils and animal fats as well as reducing compression set. This makes it ideal for grease trap & septic tank applications especially in colder weather. Its has enhanced UV stability. Operating Temperature from -5°C to +60°C Proudly Australian made for Australian Conditions. These Heavy duty flexible Blue or Black PVC / Rubber Alloy hoses constructed with a rigid PVC maintain excellent flexibility even in colder climates. Suited for Suction or open ended Discharge of environmental waste products and chemicals. Particularly well suited for grease trap & septic tank applications.
Features
- Proudly Australian made for Australian Conditions.
- These Heavy duty flexible Blue or Black PVC / Rubber Alloy hoses constructed with a rigid PVC maintain excellent flexibility even in colder climates.
- Smooth bore to permit maximum flow.
- Polymeric plasticizer resists solvent extraction
- Operating temperature from -5⁰C to +60⁰C.
- High rubber content gives enhanced resistance to abrasion as well as chemicals, animal fats, mineral oils & some fuels.
- Outstanding UV stability
Construction
Heavy duty flexible Blue or Black PVC / Rubber Alloy hoses constructed with a rigid PVC
Applications
Suited for Suction or open ended Discharge of environmental waste products and chemicals. Particularly well suited for grease trap & septic tank applications.
Specifications
| CODE | Nom ID | Nom OD | Inlet Discharge Rating @ 20⁰C | Vac Rating *mm hg | Min Bend Radius | Stock Lengths |
|---|---|---|---|---|---|---|
| 36BL20X20 | 20mm | 25.8mm | 1mpa / 145psi | 624 | 100mm | 20m |
| 36**25X** | 25mm | 31.9mm | .9mpa / 130psi | 624 | 120mm | 20 & 30m |
| 36**32X** | 32mm | 39.4mm | .8mpa / 116psi | 624 | 150mm | 20 & 30m |
| 36**38X** | 38mm | 46.1mm | .7mpa / 101psi | 624 | 200m | 20 & 30m |
| 36**50X** | 50mm | 60.2mm | .6mpa / 87psi | 624 | 300mm | 20m |
| 36**63X** | 63mm | 74.4mm | .6mpa / 87psi | 624 | 400mm | 20 & 30m |
| 36**76X** | 76mm | 89.6mm | .5mpa / 73psi | 624 | 450mm | 20m |
| 36B102X20 | 102mm | 116mm | .4mpa / 58psi | 624 | 600mm | 20m |
Specifications
| Hose ID | 20mm, 25mm, 32mm, 38mm, 50mm, 63mm, 76mm |
| Hose Length | 20m, 30m |
| Hose Pressure (Black Nitrile/PVC Suctio) | 1000kPa / 145psi, 900kPa / 130psi, 800kPa / 116psi, 800kPa / 113psi, 700kPa / 101psi, 600kPa / 87psi, 500kPa / 73psi, 400kPa / 58psi |
