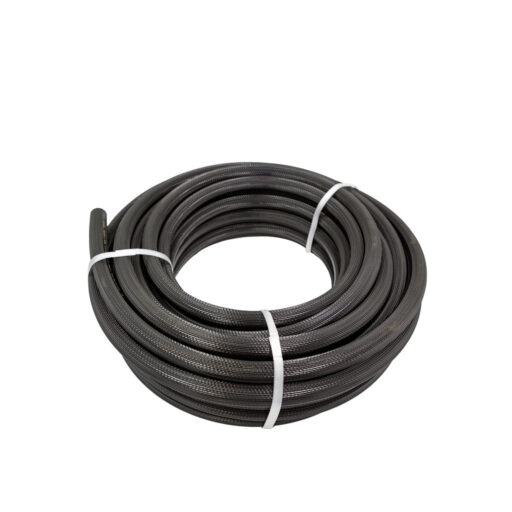

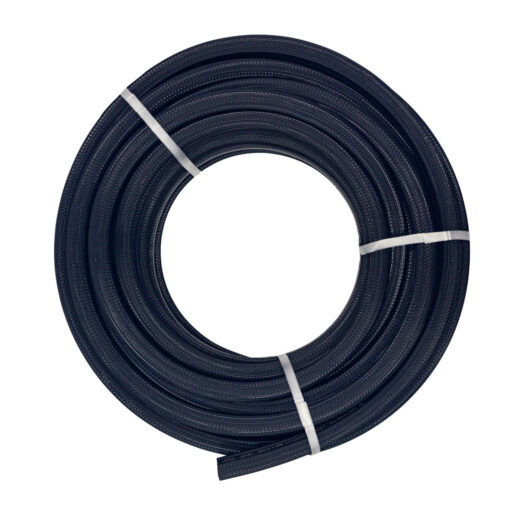

A flexible robust heavy duty hose with a ribbed PVC cover for use on Fire Hose Reels or in fire fighting applications.
A flexible robust heavy duty hose with a ribbed PVC cover for use on Fire Hose Reels or in fire fighting applications. Hose has excellent durability and UV stability. Conforms to AS/NZS 1221.
Features
- PROUDLY AUSTRALIAN MADE.
- Conforms to AS/NZS 1221
- Excellent U.V. resistance to withstand extreme Australian conditions.
- Operating temperature -5⁰C to + 60⁰C.
- Outstanding flexibility with excellent abrasion resistance.
- Manufactured with a 4:1 pressure safety factor.
Construction
Inner Core: Black PVC with a smooth finish. Reinforcing: High tenacity polyester yarn. Outer Cover: UV stabilised black or high visibility yellow PVC with ribbed finish. (Yellow used for rural fire services).
Applications
RX Fire reel hose is designed for use with fire reels or fire fighting applications, it can also be used as an inexpensive general purpose water delivery hose.
Specifications
| Code | Nom I.D. | Nom O.D. | Working pressure @ 20⁰C | Stock Lengths |
|---|---|---|---|---|
| 27FRH19X** | 19mm | 26mm | 1mpa / 145psi | 20m, 25m, 30m, 36m, & 100m |
| 27FRH19X**(yellow) | 19mm | 26mm | 1mpa / 145psi | 20m & 100m * Made to order |
| 27FRH25X** | 25mm | 34.1mm | 1mpa / 145psi | 20m, 30m, 36m & 100m |
Specifications
| Hose ID | 13mm, 19mm, 25mm |
| Hose Length | 10m, 18m, 20m, 25m, 30m, 36m, 50m, 60m, 100m, 6m, 8m, 33m |
| Colour (Fire Reel Pressure Hos) (Fire Reel Pressure Hose) | Black, Red, Yellow |
| Customer Print (Fire Reel Pressure Hos) | Fire Corp, Hose Factory, Kline, PY (Yellow print marker P), Plain, SY (Yellow print marker S), Transtank |
