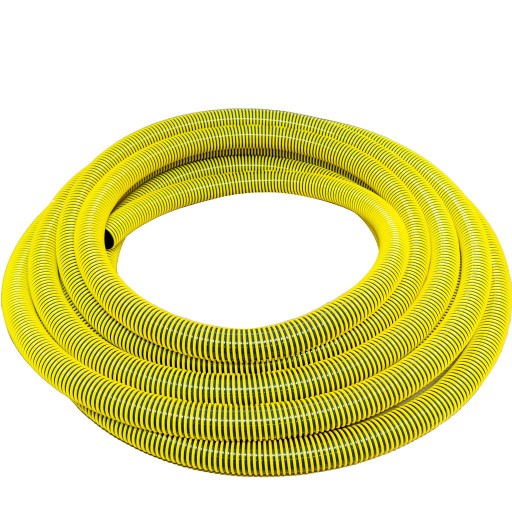

A robust suction and discharge hose well suited for use in extreme environments, its high nitrile / PVC compound gives this hose excellent flexibility and UV stability.
A robust suction and discharge hose well suited for use in extreme environments, its high nitrile / PVC compound gives this hose excellent flexibility and UV stability. It is especially well suited for use with abrasive slurries, on waste trucks, for many chemicals plus high volume air seeder applications. Operating Temperature from -5°C to +60°C.
Features
- PROUDLY AUSTRALIAN MADE
- Black High nitrile content PVC hose with a highly visible yellow raised rigid PVC helix
- A magnificently flexible hose
- Smooth bore to reduce friction and abrasion
- Sturdy close pitch helix with right hand spiral provides good external protection
- Quality PVC/Nitrile blend gives this hose excellent flexibility & UV stability
- Polymeric plasticizer resists solvent extraction
- Operating temperature from -5°C to +60°C
Construction
Black High nitrile content PVC hose with a highly visible yellow raised rigid PVC helix. Quality PVC/Nitrile blend gives this hose excellent flexibility & UV stability. Polymeric plasticizer resists solvent extraction.
Applications
Especially well suited for use with abrasive slurries, on waste trucks, for many chemicals plus high volume air seeder applications.
Specifications
| CODE | NOM ID | NOM OD | Working Pressure @ 20⁰C | Vac Rating *mm hg | Min Bend Radius | Stock Lengths |
|---|---|---|---|---|---|---|
| 36YT50X20 | 50mm | 63.4mm | 05mpa / 73psi | 600 | 350mm | 20m |
| 36YT63X20 | 63mm | 79.6mm | .4mpa / 58psi | 600 | 380mm | 20m |
| 36YT76X20 | 76mm | 93.4mm | .4mpa / 58psi | 600 | 400mm | 20m |
| 36YT102X20 | 102mm | 118mm | .3mpa / 43psi | 600 | 600mm | 20m |
Specifications
| Hose ID | 50mm, 63mm, 76mm, 102mm |
| Hose Pressure | 500kPa / 73psi, 400kPa / 58psi, 300kPa / 43.5psi |
| Hose Length | 20m |
