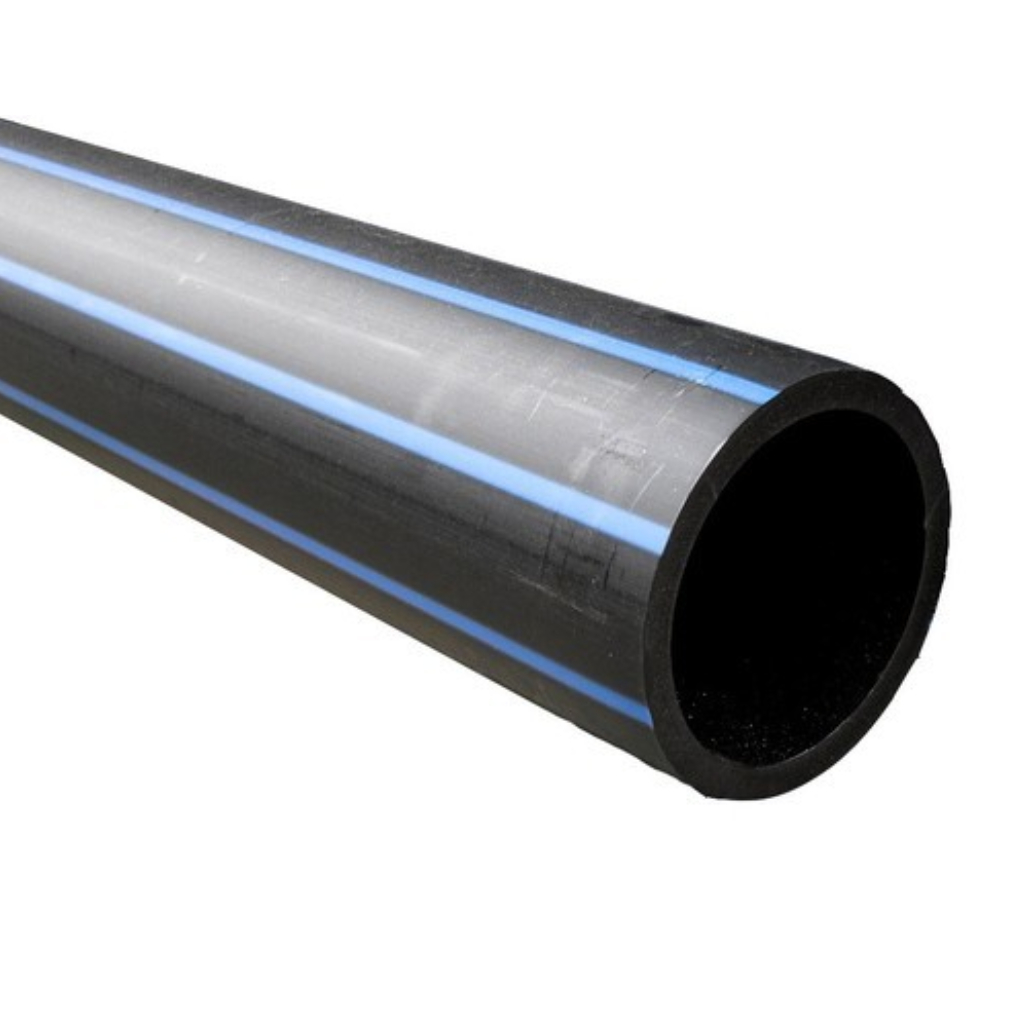

Manufactured in accordance with AS4130 (Polyethylene Pipes for Pressure Applications) this pipe is colour coded with a blue stripe to signify its intended use in potable water systems. Manufactured from all virgin raw materials it has a design life of 50 years. This pipe has excellent UV stability.
Recommended Use: A robust, corrosion resistant pressure pipe for conveyance of water in a wide Variety of applications, available in a medium to high pressure ratings.
RX Polyethylene pipe is manufactured from pipe grade, all virgin PE100 polyethylene compound with a design life of 50 years.
Standards & compliance
- Approx. 50-year design life
- Conforms to AS/NZS 4130 (Polyethylene pipes for pressure applications).
- High tensile strength and excellent U.V. stability.
- Blue stripe to signify for potable (drinking) water applications.
RX Polyethylene pipe is manufactured from pipe grade, all virgin PE100 polyethylene compound with a design life of 50 years.
| Nom O.D. | Nominal Pressure Rating @ 20⁰ C — PN8 | PN10 | PN12.5 | PN16 | Stock Lengths |
|---|---|---|---|---|---|
| 16mm | N/A | N/A | N/A | 1600kpa | 50m & 300m |
| 20mm | N/A | N/A | 1250kpa | 1600kpa | 200m |
| 25mm | N/A | 1000kpa | 1250kpa | 1600kpa | 50m & 200m |
| 32mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 50m & 200m |
| 40mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 50m & 150m |
| 50mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 50m & 150m |
| 63mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 50m & 150m |
| 75mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 100m |
| 90mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 100m |
| 110mm | 800kpa | 1000kpa | 1250kpa | 1600kpa | 100m |
