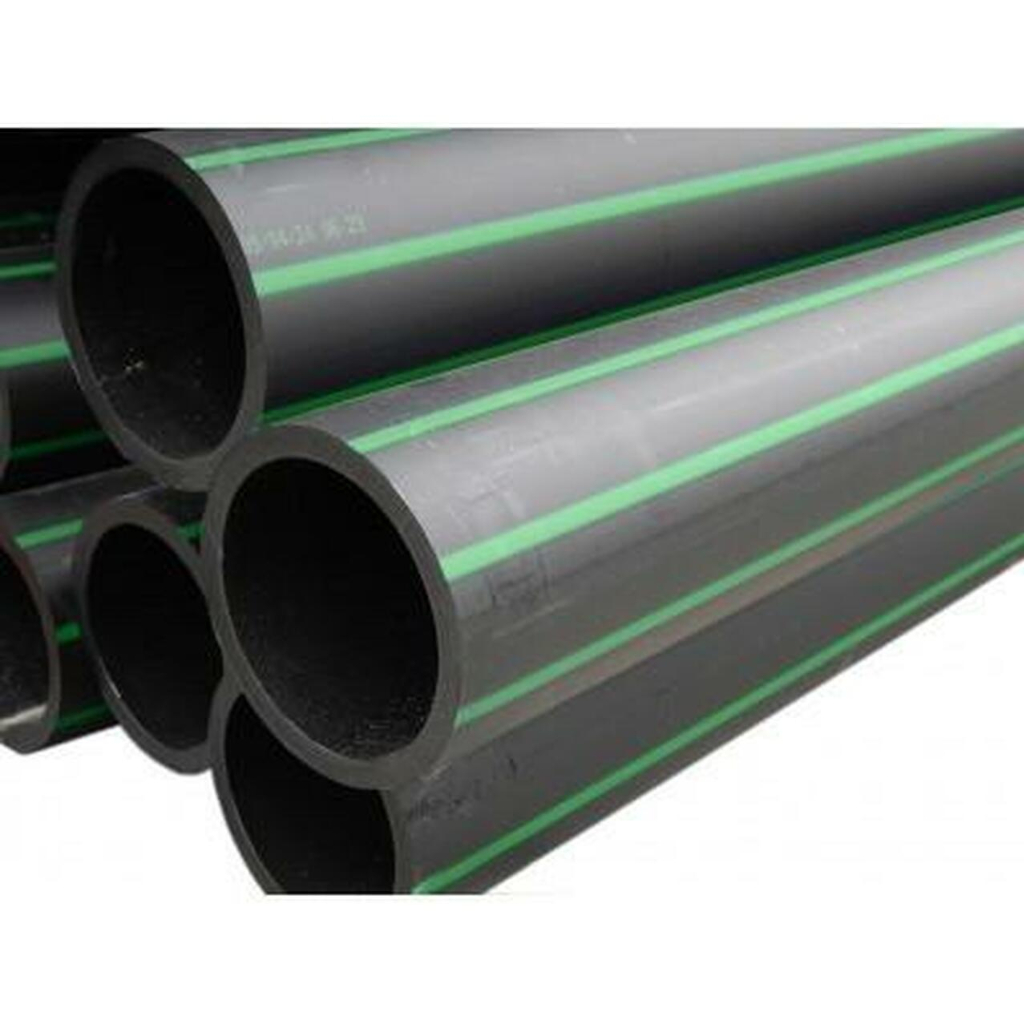

RX Green Stripe Rural 800 Pipe is manufactured from all virgin, medium duty Polyethylene resins. The addition of carbon black gives this product excellent UV stability. RX Green Stripe Rural Pipe is suitable for above and below ground applications. This pipe has a Working Pressure of 800 Kpa at 20 Deg C.
Features
- Excellent U.V. stability
- Green line to signify imperial rural pipe.
- RX Rural 800 Green Stripe Polyethylene pipe is manufactured from pipe grade, all virgin polyethylene compound with a design life of 20 years.
Construction
Manufactured from pipe grade, all virgin polyethylene compound with a design life of 20 years. The addition of carbon black gives this product excellent UV stability.
Applications
For use in rural areas - above or below the ground in water transfer, Irrigation, stock watering and other medium pressure applications.
Specifications
| Nom I.D. | Min I.D. | Min Wall | Nom Pressure Rating @ 20⁰ C | Stock Lengths |
|---|---|---|---|---|
| ¾" | 18.6mm | 1.4mm | 800kpa / 116psi | 50m & 200m |
| 1" | 24.1mm | 1.5mm | 800kpa / 116psi | 50m & 200m |
| 11/4" | 31.2mm | 1.9mm | 800kpa / 116psi | 50m, 150m & 300m |
| 11/2" | 37.6mm | 2.2mm | 800kpa / 116psi | 50m, 150m & 300m |
| 2" | 50.2mm | 3.0mm | 800kpa / 116psi | 50m, 100m & 200m |
Specifications
| Size (BSP Thread Equivalent) | 20mm, 25mm, 32mm, 40mm, 50mm |
| Pipe Length | 50m, 100m, 150m, 200m, 300m |
| Hose Pressure | 800kPa / 116psi |
